Rockchip TV box

Our Android TV box which is using Rockchip SoC

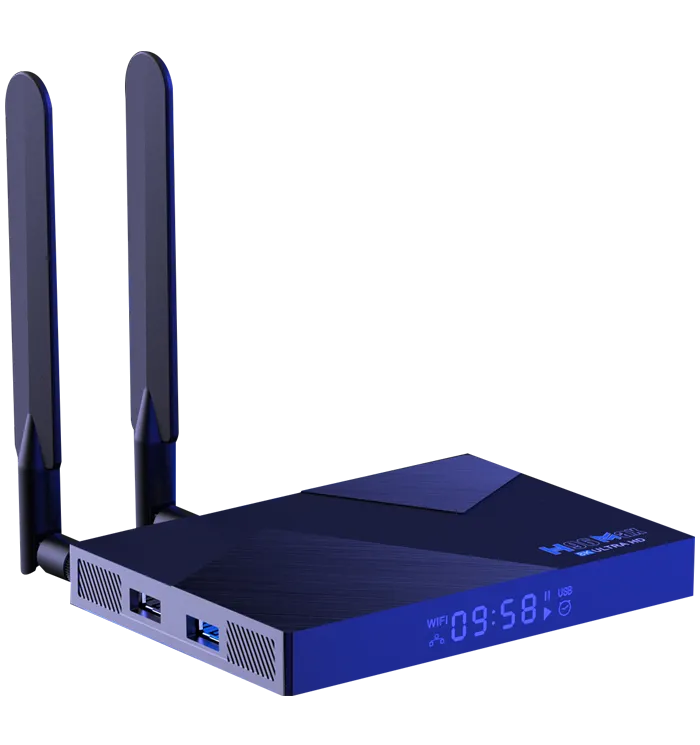

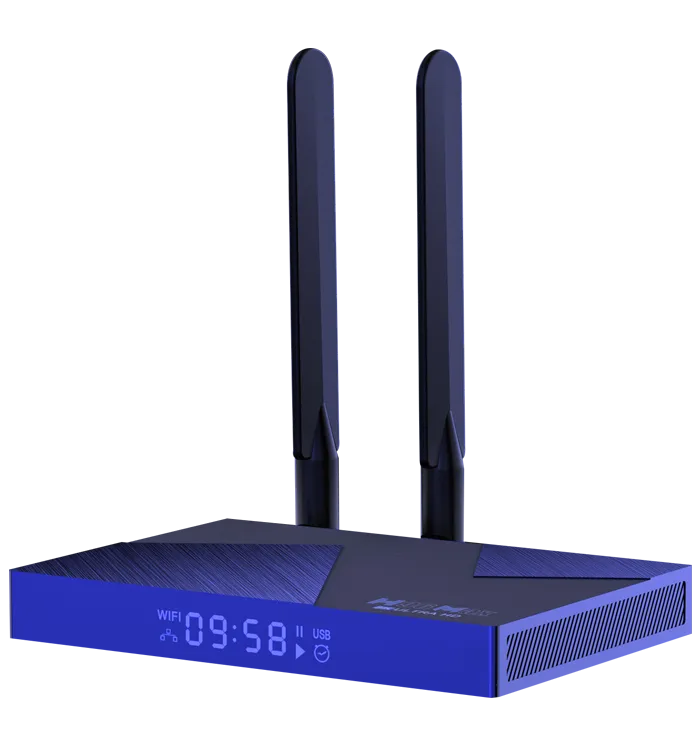

H96 Max V58

  • Android 12.0
  • RK3588
    quad-core Cortex-A76 and quad-core ortex-A55
  • ARM Mali-G610 MP4
  • 4GB/8GB LPDDR4 / LPDDR4X
  • eMMC 32G/64G
  • 8K HDR
  • BT 5.0
  • WiFi 6 2.4G/5G(802.11ax)
  • 10/100/1000M standard RJ-45
  • 1 x USB2.0 1 x USB3.0 1 x SPDIF
  • Yes
  • 2.4G Air mouse
  • External 12.0V/1.5A
  • 96*138*22mm / 175*148*58mm
  • 185g / 551g

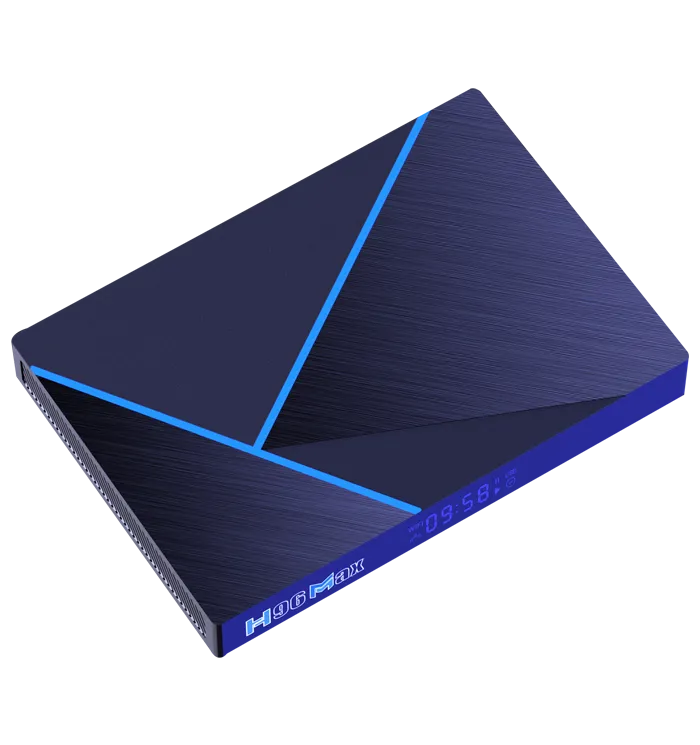

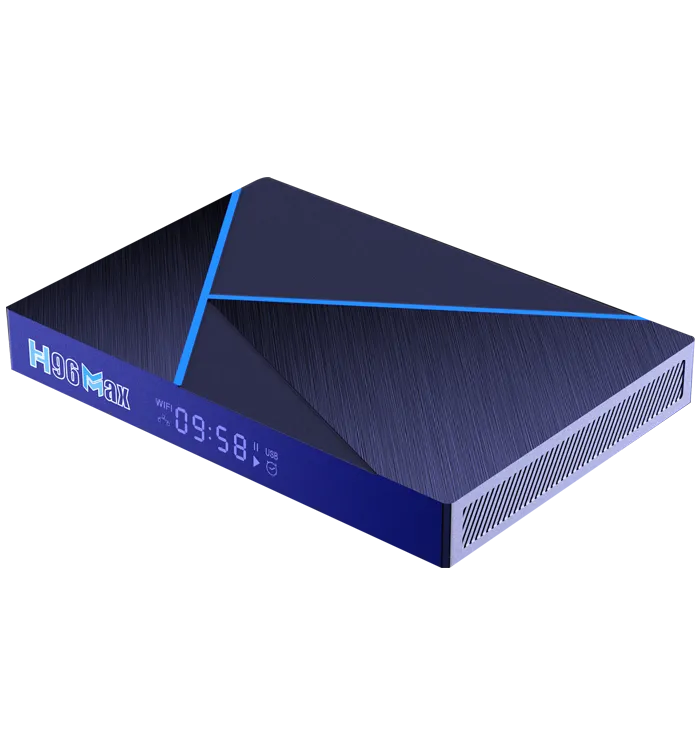

H96 Max V56

  • Android 12.0
  • RK3566
    Quad-Core 64bit Cortex-A55
  • Mali-G52-2EE
  • 2GB/4GB/8GB LPDDR4 / LPDDR4X
  • eMMC 16G/32G/64G
  • 4K HDR
  • BT 4.0
  • WiFi 2.4G/5G(ac)
  • 10/100/1000M standard RJ-45
  • 1 x USB2.0 1 x USB3.0 1 x SPDIF
  • Yes
  • IR
  • DC 5V/2A
  • 96*138*22mm / 171*141*59mm
  • 165g / 401g

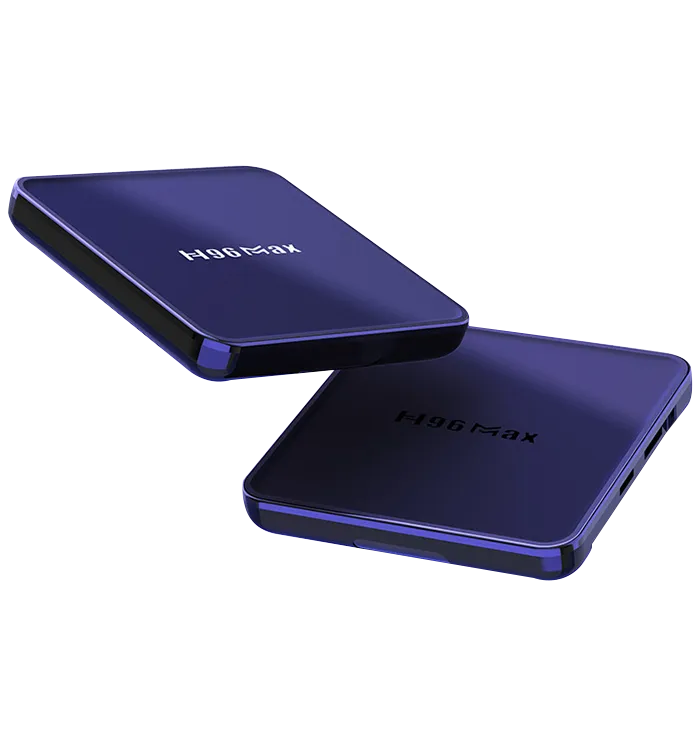

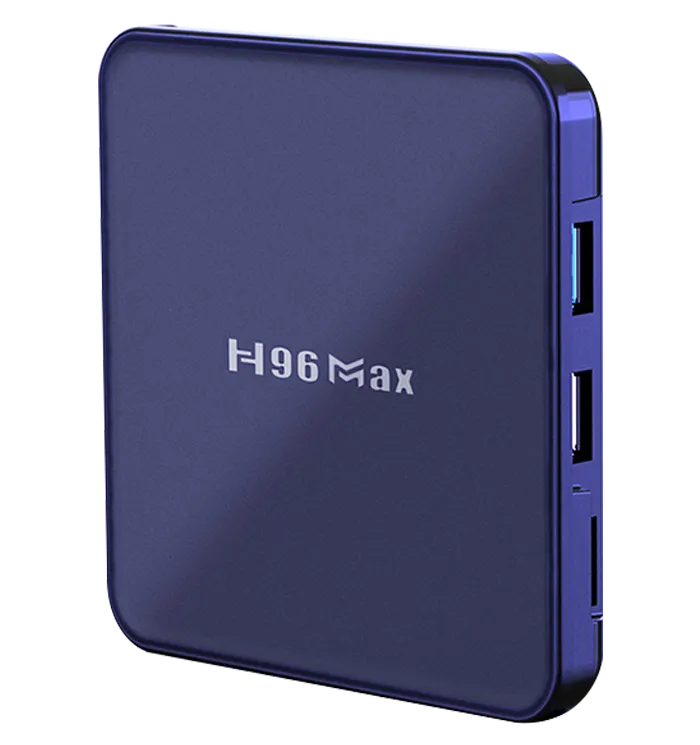

H96 Max V12

  • Android 12.0
  • RK3318
    Quad-Core 64bit Cortex-A53
  • Penta-Core Mali-450 Up to 750Mhz+
  • 2GB/4GB DDR3
  • eMMC 16G/32G/64G
  • 4K HDR
  • BT 4.0
  • 802.11 a/b/g/n 2.4G/5G
  • 10/100M standard RJ-45
  • 1 x USB2.0 1 x USB3.0 1 x TF Card
  • IR
  • DC 5V/2A
  • 100*100*16.5mm / 180*110*63mm
  • 93g / 320g

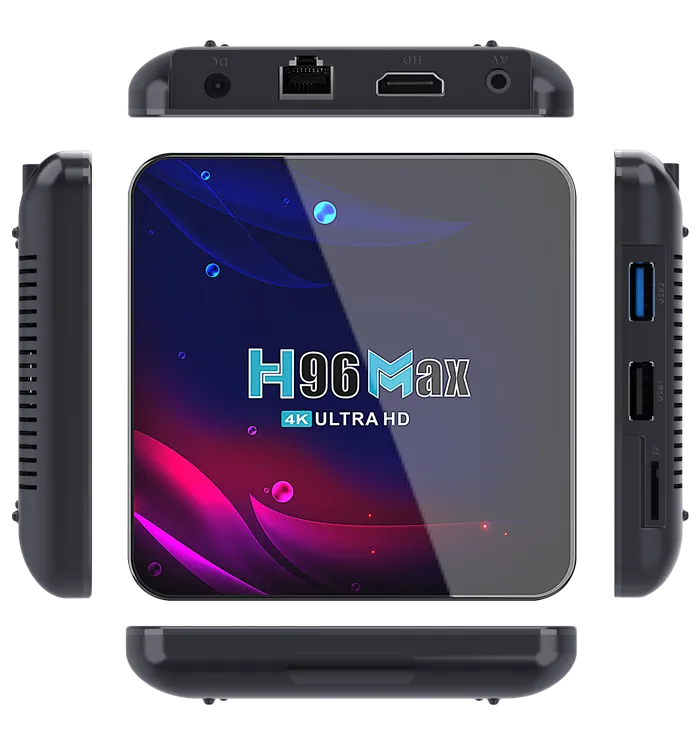

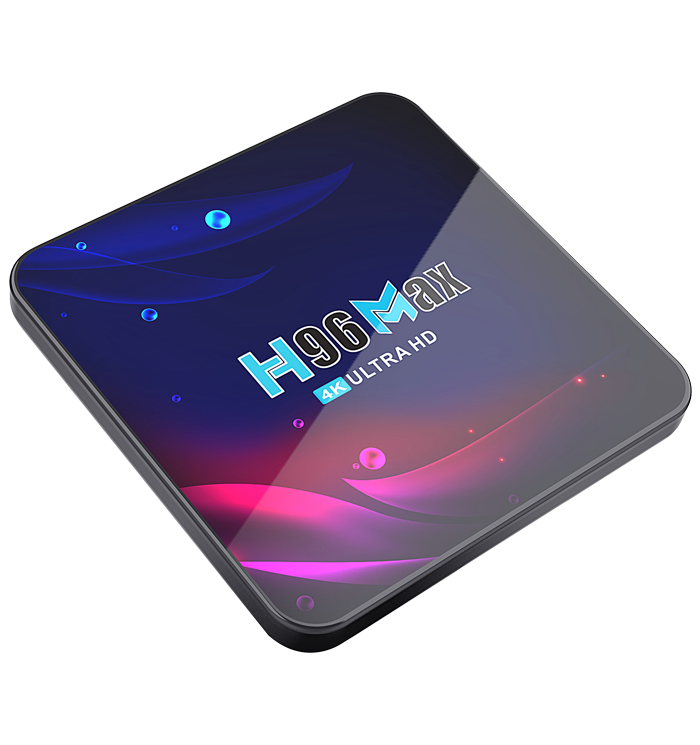

H96 MAX V11

  • Android 11.0
  • RK3318
    Quad-Core 64bit Cortex-A53
  • Penta-Core Mali-450 Up to 750Mhz+
  • 2GB/4GB DDR3
  • eMMC 16G/32G/64G
  • 4K HDR
  • BT 4.0
  • 802.11 a/b/g/n 2.4G/5G
  • 10/100M standard RJ-45
  • 1 x USB2.0 1 x USB3.0 1 x TF Card
  • IR
  • DC 5V/2A
  • 100*100*16mm / 180*110*63mm
  • 92g / 322g

H96 MAX 3566

  • Android 11.0
  • RK3566
    Quad-Core 64bit Cortex-A55
  • Mali-G52-2EE
  • 4GB/8GB LPDDR4 / LPDDR4X
  • eMMC 32G/64G/128G
  • 4K HDR
  • BT 4.0
  • WiFi 2.4G/5G(ac)
  • 10/100/1000M standard RJ-45
  • 1 x USB2.0 1 x USB3.0 1 x SPDIF
  • Yes
  • IR or BT
  • DC 5V/2A
  • 96*138*22mm / 175*148*60mm
  • 165g / 443g

H96 MAX RK3318

  • Android 10.0
  • RK3318
    Quad-Core 64bit Cortex-A53
  • Penta-Core Mali-450 Up to 750Mhz+
  • 2GB/4GB DDR3
  • eMMC 16G/32G/64G
  • 4K HDR
  • BT 4.0
  • 802.11 a/b/g/n 2.4G/5G
  • 10/100M standard RJ-45
  • 1 x USB2.0 1 x USB3.0 1 x TF Card
  • Yes
  • IR
  • DC 5V/2A
  • 100*100*18mm / 180*110*63mm
  • 103g / 337g

H96 MINI V8

  • Android 10.0
  • RK3228A
    28nm Quad core Cortex A7
  • ARM Mali-400 GPU
  • 1GB/2GB DDR3
  • eMMC 8G/16G
  • 4K HDR
  • 802.11 b/g/n 2.4G
  • 10/100M standard RJ-45
  • 2 x USB2.0
  • IR
  • DC 5V/2A
  • 90*90*16mm / 170*99*52mm
  • 80g / 290g

H96 MINI H8

  • Android 9.0
  • RK3228A
    28nm Quad core Cortex A7
  • ARM Mali-400 GPU
  • 1GB/2GB DDR3
  • eMMC 8G/16G
  • 4K HDR
  • BT 4.0
  • 802.11 a/b/g/n 2.4G/5G
  • 10/100M standard RJ-45
  • 2 x USB2.0
  • Yes
  • IR
  • DC 5V/2A
  • 101*100*17.5mm / 180*11*63mm
  • 103g / 336g

Choose your TV Box

Compare our set-top boxes and choose the best solution for your project.

Model H96 Max V58 H96 Max V56 H96 Max V12 H96 MAX V11 H96 MAX 3566 H96 MAX RK3318 H96 MINI V8 H96 MINI H8
OS Android 12.0 Android 12.0 Android 12.0 Android 11.0 Android 11.0 Android 10.0 Android 10.0 Android 9.0
CPU Processor RK3588 quad-core Cortex-A76 and quad-core Cortex-A55 RK3566 Quad-Core 64bit Cortex-A55 RK3318 Quad-Core 64bit Cortex-A53 RK3318 Quad-Core 64bit Cortex-A53 RK3566 Quad-Core 64bit Cortex-A55 RK3318 Quad-Core 64bit Cortex-A53 RK3228A 28nm Quad core Cortex A7 RK3228A 28nm Quad core Cortex A7
Graphics ARM Mali-G610 MP4 Mali-G52-2EE Penta-Core Mali-450 Up to 750Mhz+ Penta-Core Mali-450 Up to 750Mhz+ Mali-G52-2EE Penta-Core Mali-450 Up to 750Mhz+ ARM Mali-400 GPU ARM Mali-400 GPU
DRAM(RAM) 4GB/8GB LPDDR4 / LPDDR4X 2GB/4GB/8GB LPDDR4 / LPDDR4X 2GB/4GB DDR3 2GB/4GB DDR3 4GB/8GB LPDDR4 / LPDDR4X 2GB/4GB DDR3 1GB/2GB DDR3  1GB/2GB DDR3
Flash (ROM) eMMC 32G/64G eMMC 16G/32G/64G eMMC 16G/32G/64G eMMC 16G/32G/64G eMMC 32G/64G/128G eMMC 16G/32G/64G eMMC 8G/16G eMMC 8G/16G
Resolution
Bluetooth BT 5.0 BT 4.0 BT 4.0 BT 4.0 BT 4.0 BT 4.0 / BT 4.0
Wi-Fi WiFi 6 2.4G/5G(802.11ax) WiFi 2.4G/5G(ac) 802.11 a/b/g/n 2.4G/5G 802.11 a/b/g/n 2.4G/5G WiFi 2.4G/5G(ac) 802.11 a/b/g/n 2.4G/5G 802.11 b/g/n 2.4G 802.11 a/b/g/n 2.4G/5G
Support AV1 / / / / / / / /
Ethernet 10/100/1000M standard RJ-45 10/100/1000M standard RJ-45 10/100M standard RJ-45 10/100M standard RJ-45 10/100/1000M standard RJ-45 10/100M standard RJ-45 10/100M standard RJ-45 10/100M standard RJ-45
Port 1 x USB2.0 1 x USB3.0 1 x SPDIF 1 x USB2.0 1 x USB3.0 1 x SPDIF 1 x USB2.0 1 x USB3.0 1 x TF Card 1 x USB2.0 1 x USB3.0 1 x TF Card 1 x USB2.0 1 x USB3.0 1 x SPDIF 1 x USB2.0 1 x USB3.0 1 x TF Card 2 x USB2.0 2 x USB2.0
LED display Yes Yes / / Yes Yes / Yes
Remote Type 2.4G Air mouse IR IR IR IR or BT IR IR IR
Power Supply External 12.0V/1.5A DC 5V/2A DC 5V/2A DC 5V/2A DC 5V/2A DC 5V/2A DC 5V/2A DC 5V/2A
Size TV Box/Package 96*138*22mm / 175*148*58mm 96*138*22mm / 171*141*59mm 100*100*16.5mm / 180*110*63mm 100*100*16mm / 180*110*63mm 96*138*22mm / 175*148*60mm 100*100*18mm / 180*110*63mm 90*90*16mm / 170*99*52mm 101*100*17.5mm / 180*11*63mm
Weight TV Box/Package 185g / 551g 165g / 401g 93g / 320g 92g / 322g 165g / 443g 103g / 337g 80g / 290g 103g / 336g

Our clients’ testimonials

“Shenzhen Haochuangyi Technology has taken the entertainment level to a new level altogether. Their innovative approach towards offering the best quality TV boxes has changed how our restaurants enjoy movies or shows. ”

Stefan Goodman,

Chief Development Officer, SEKET

“I bought H96Max for my movie theatre, and I am glad I chose Shenzhen Haochuangyi Technology. The outstanding quality and remote control efficiency make the complete setup smooth and easy. .”

Anderson Hoffman

Senior Manager, Filmit

“Shenzhen Haochuangyi Technology indeed provides complete value for money with their products. The innovative features of TV boxes manufactured by Shenzhen Haochuangyi Technology are revolutionizing the way of our entertainment.”

Kelvin Torres

Procument manager,KEAIPTV

FAQ

Can I print my own logo on your product?
OEM&ODM orders are warmly welcome. Our professional technical team is waiting for serving you at any time.
Where are Shenzhen Haochuangyi Technology products available?
Our company products are accessible worldwide with our strong chain of networks in Asia, Europe, and America.
What is the resolution of Shenzhen Haochuangyi Technology TV boxes?
Our resolution ranges from 4K to 8K to provide amazing video quality in every TV box from our collection.
Which type of Ethernet is used in Shenzhen Haochuangyi Technology TV boxes?
We offer 10/100 standard RJ 45 ethernet in our TV boxes for better connectivity.
What type of remote types can I get?
We offer Bluetooth remote, IR, and 2.4G Air Mouse depending upon the TV box model type.
What If I am facing an issue with my TV box?
We have a dedicated customer support service, so you can quickly contact one of our executives you assist you in resolving the issue.
How can I get customized TV Boxes?
Contact us now to get the customized TV boxes, where we will provide complete white labeling solutions.
